Gateway, ARP & Routing

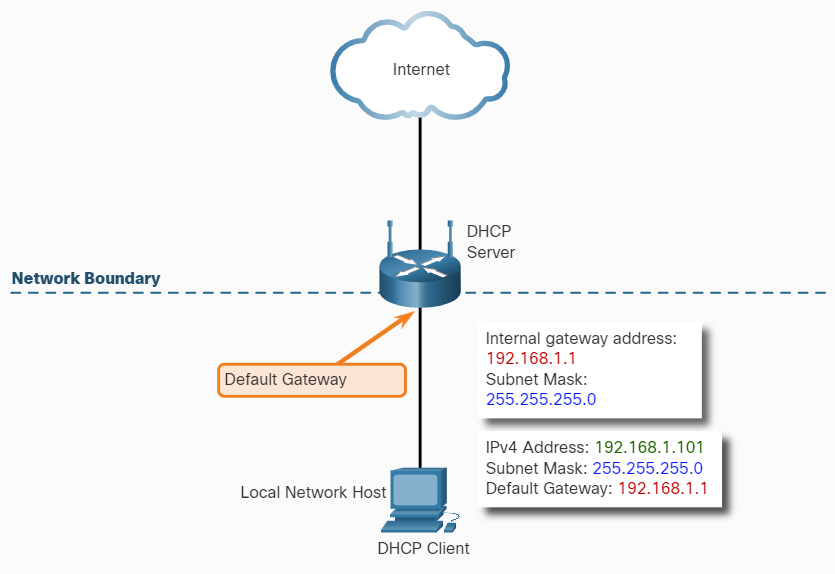

Network Boundaries

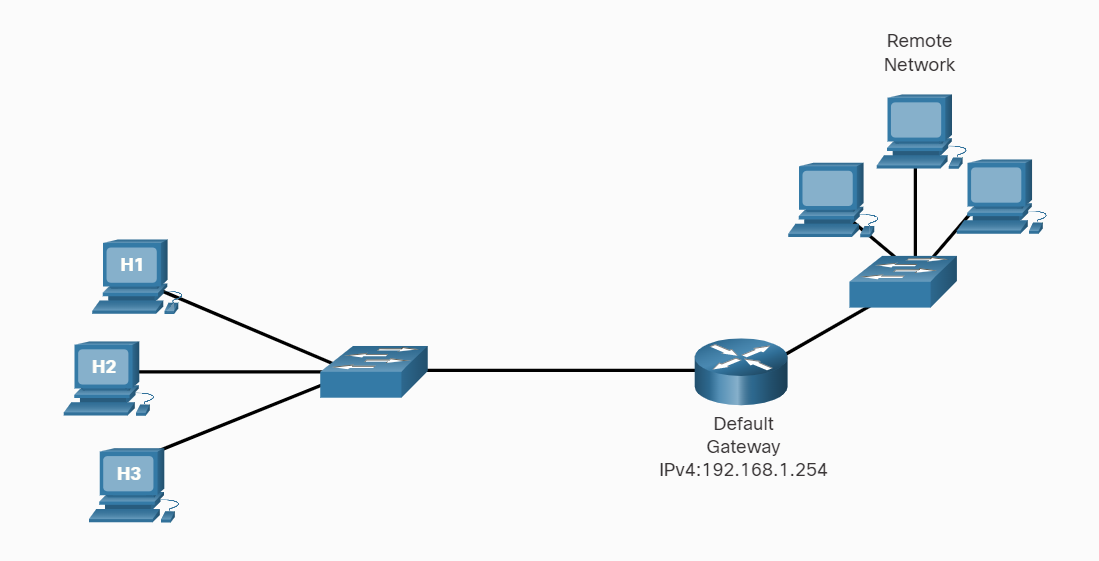

Every host on a network must use the router as a gateway to other networks. Therefore, each host must know the IPv4 address of the router interface connected to the network where the host is attached. This address is known as the default gateway address. It can be either statically configured on the host or received dynamically by DHCP.

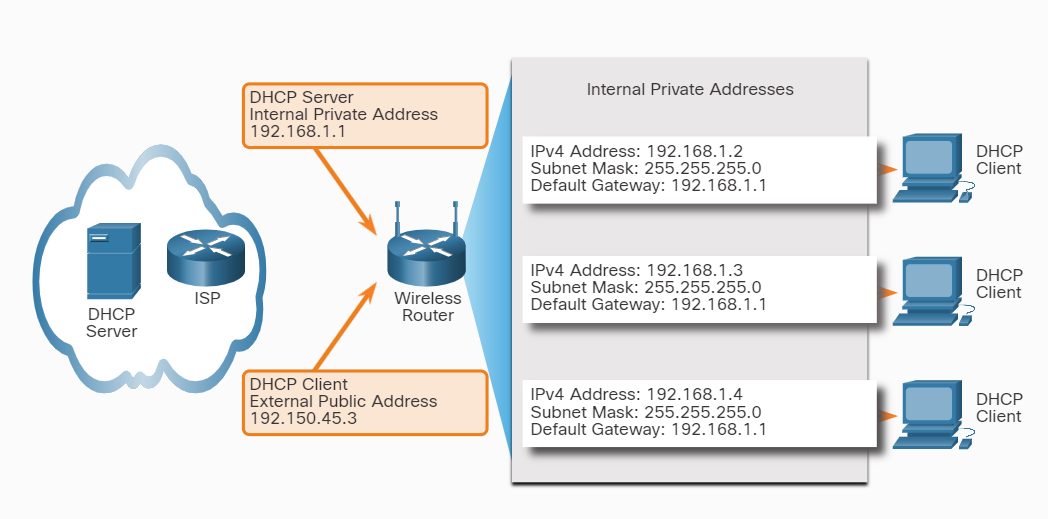

The wireless router acts as a DHCP server for all local hosts attached to it, either by Ethernet cable or wirelessly. These local hosts are referred to as being located on an internal, or inside, network.
When a wireless router is connected to the ISP, it acts like a DHCP client to receive the correct external network IPv4 address for the internet interface. ISPs usually provide an internet-routable address, which enables hosts connected to the wireless router to have access to the internet. The wireless router serves as the boundary between the local internal network and the external internet.
NAT Operation
The wireless router receives a public address from the ISP, which allows it to send and receive packets on the internet. It, in turn, provides private addresses to local network clients.
The process used to convert private addresses to internet-routable addresses is called NAT (Network Address Translation). With NAT, a private (local) source IPv4 address is translated to a public (global) address. The process is reversed for incoming packets. The wireless router is able to translate many internal IPv4 addresses to the same public address, by using NAT.
Only packets destined for other networks need to be translated. These packets must pass through the gateway, where the wireless router replaces the private IPv4 address of the source host with its own public IPv4 address.
MAC & IP

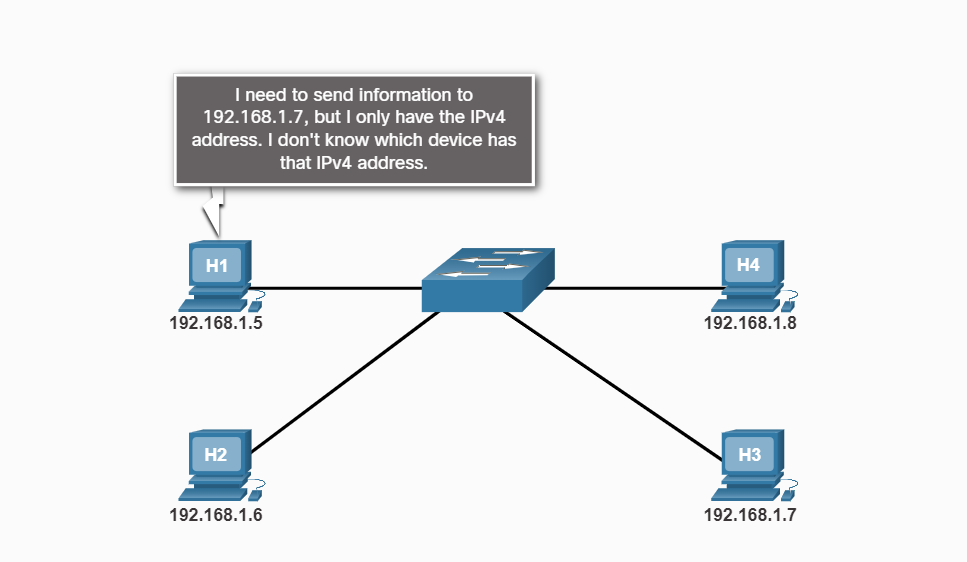

Sometimes a host must send a message, but it only knows the IP address of the destination device. The host needs to know the MAC address of that device. The MAC address can be discovered using address resolution.
There are two primary addresses assigned to a device on an Ethernet LAN:
- Physical address (the MAC address) – Used for NIC-to-NIC communications on the same Ethernet network.
- Logical address (the IP address) – Used to send the packet from the source device to the destination device.
The destination IP address may be on the same IP network as the source, or it may be on a remote network. When the destination IP address (IPv4 or IPv6) is on a remote network, the destination MAC address will be the address of the host default gateway (i.e., the router interface).
Routers examine the destination IPv4 address to determine the best path to forward the IPv4 packet. When the router receives the Ethernet frame, it:
- De-encapsulates the Layer 2 information;
- Using the destination IPv4 address, it determines the next-hop device;
- And then encapsulates the IPv4 packet in a new data link frame for the outgoing interface.
Along each link in a path, an IP packet is encapsulated in a frame. The frame is specific to the data link technology that is associated with that link, such as Ethernet. If the next-hop device is the final destination, the destination MAC address will be that of the device Ethernet NIC.
Example

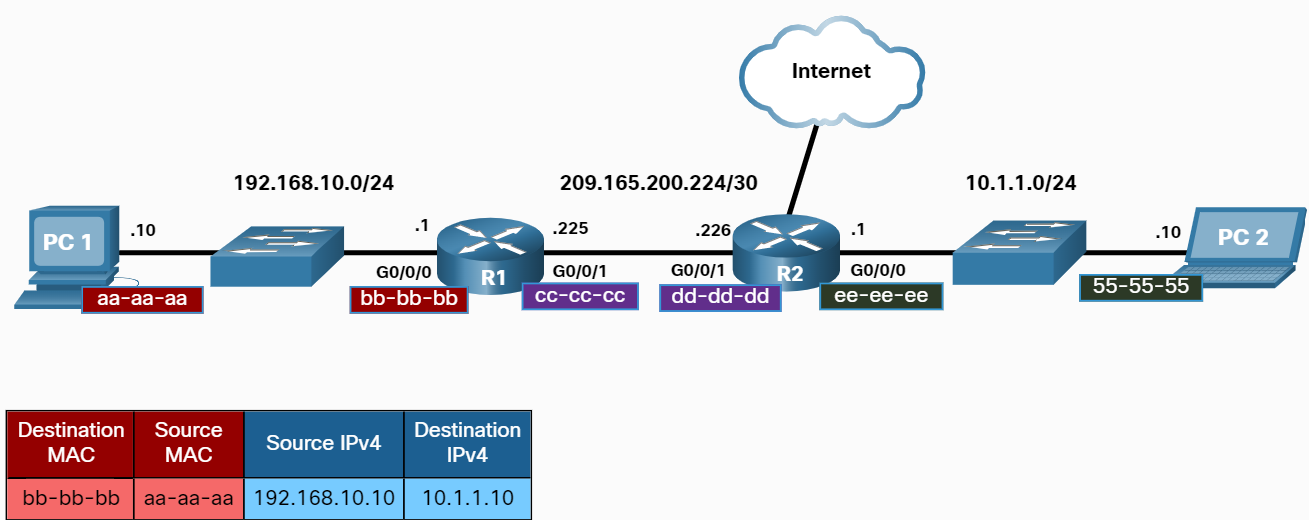

In this example, PC1 wants to send a packet to PC2. PC2 is located on remote network. Because the destination IPv4 address is not on the same local network as PC1, the destination MAC address is that of the local default gateway on the router.
Routers examine the destination IPv4 address to determine the best path to forward the IPv4 packet. When the router receives the Ethernet frame, it de-encapsulates the Layer 2 information. Using the destination IPv4 address, it determines the next-hop device, and then encapsulates the IPv4 packet in a new data link frame for the outgoing interface.

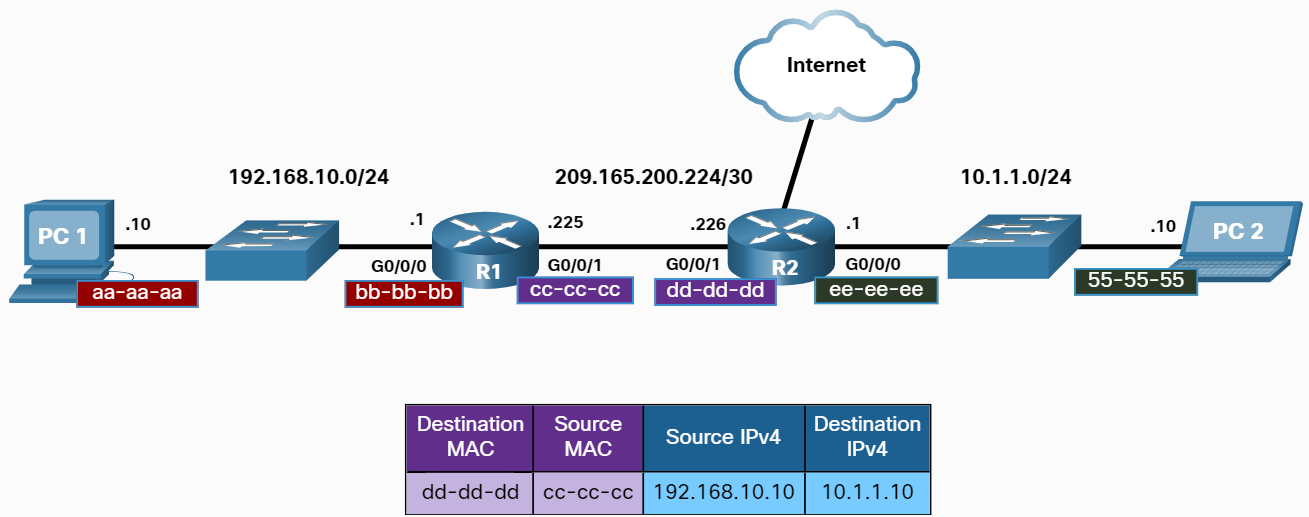

R1 would now encapsulate the packet with new Layer 2 address information. The new destination MAC address would be that of the R2 G0/0/1 interface and the new source MAC address would be that of the R1 G0/0/1 interface.
Along each link in a path, an IP packet is encapsulated in a frame. The frame is specific to the data link technology that is associated with that link, such as Ethernet. If the next-hop device is the final destination, the destination MAC address will be that of the device Ethernet NIC
Broadcast Containment
A message can only contain one destination MAC address. Address resolution lets a host send a broadcast message to a unique MAC address that is recognized by all hosts. The broadcast MAC address is a 48-bit address made up of all ones. MAC addresses are usually represented in hexadecimal notation. The broadcast MAC address in hexadecimal notation is FFFF.FFFF.FFFF. Each F in the hexadecimal notation represents four ones in the binary address.
When a host sends a broadcast message, switches forward the message to every connected host within the same local network. For this reason, a local area network, a network with one or more Ethernet switches, is also referred to as a broadcast domain.

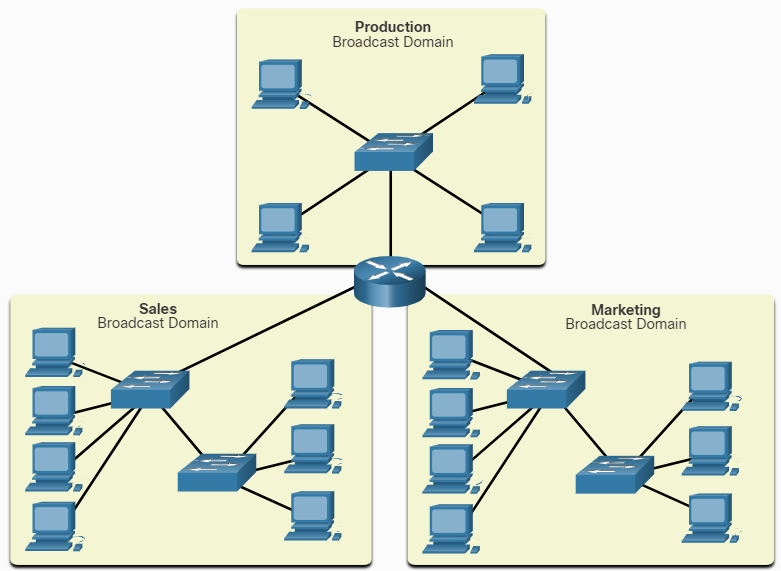

If too many hosts are connected to the same broadcast domain, broadcast traffic can become excessive. The number of hosts and the amount of network traffic that can be supported on the local network is limited by the capabilities of the switches used to connect them. To improve performance, you may need to divide one local network into multiple networks, or broadcast domains. Routers are used to divide the network into multiple broadcast domains.
On a local Ethernet network, a NIC only accepts a frame if the destination address is either the broadcast MAC address, or else corresponds to the MAC address of the NIC. Most network applications rely on the logical destination IP address to identify the location of the servers and clients.

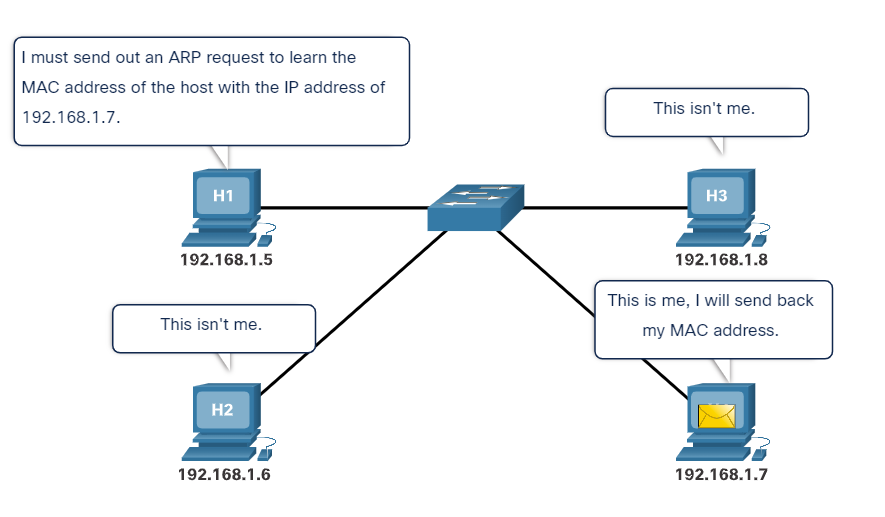

ARP (Address Resolution Protocol)
How does the sending host determine what destination MAC address to place within the frame? The sending host can ARP to discover the MAC address of any host on the same local network.
ARP uses a three-step process to discover and store the MAC address of a host on the local network when only the IPv4 address of the host is known:
- The sending host creates and sends an ARP Request - a frame addressed to a broadcast MAC address. Contained in the frame is a message with the IPv4 address of the intended destination host.
- Each host on the network receives the broadcast frame and compares the IPv4 address inside the message with its configured IPv4 address. The host with the matching IPv4 address sends its MAC address back to the original sending host.

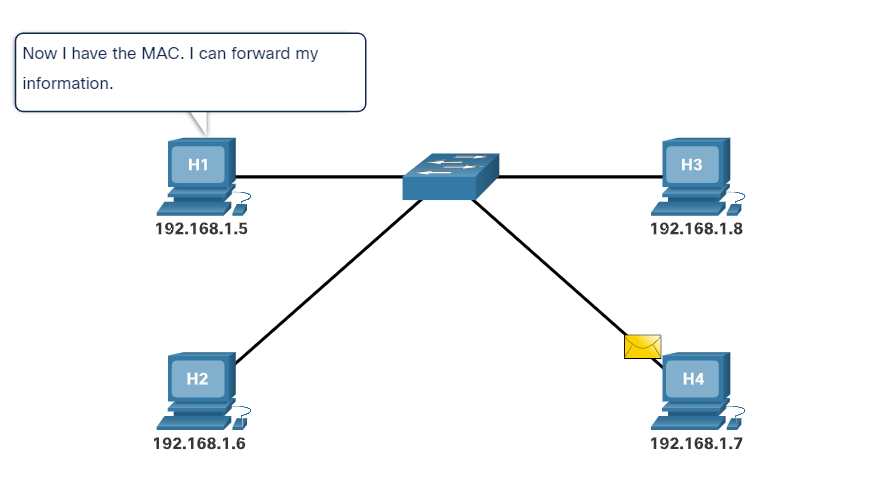

- The sending host receives the message and stores the MAC address and IPv4 address information in a table called an ARP table.
IPv6 uses a similar method known as Neighbor Discovery.
The need for routing
As networks grow, it is often necessary to divide one access layer network into multiple access layer networks. There are many ways to divide networks based on different criteria:
- Broadcast containment - Routers in the distribution layer can limit broadcasts to the local network where they need to be heard.
- Security requirements - Routers in the distribution layer can separate and protect certain groups of computers where confidential information resides.
- Physical locations - Routers in the distribution layer can be used to interconnect local networks at various locations of an organization that are geographically separated.
- Logical grouping - Routers in the distribution layer can be used to logically group users, such as departments within a company, who have common needs or for access to resources.
The distribution layer connects these independent local networks and controls the traffic flowing between them. It is responsible for ensuring that traffic between hosts on the local network stays local.
A router is a networking device that connects multiple Layer 3, IP networks. At the distribution layer of the network, routers direct traffic and perform other functions critical to efficient network operation. Routers, like switches, are able to decode and read the messages that are sent to them. Unlike switches, which make their forwarding decision based on the Layer 2 MAC address, routers make their forwarding decision based on the Layer 3 IP address.
Anytime the network portion of the IP addresses of the source and destination hosts do not match, a router must be used to forward the message.

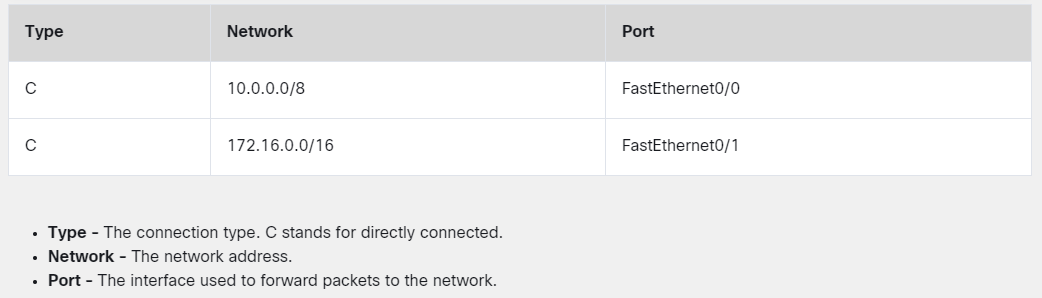

The routing table

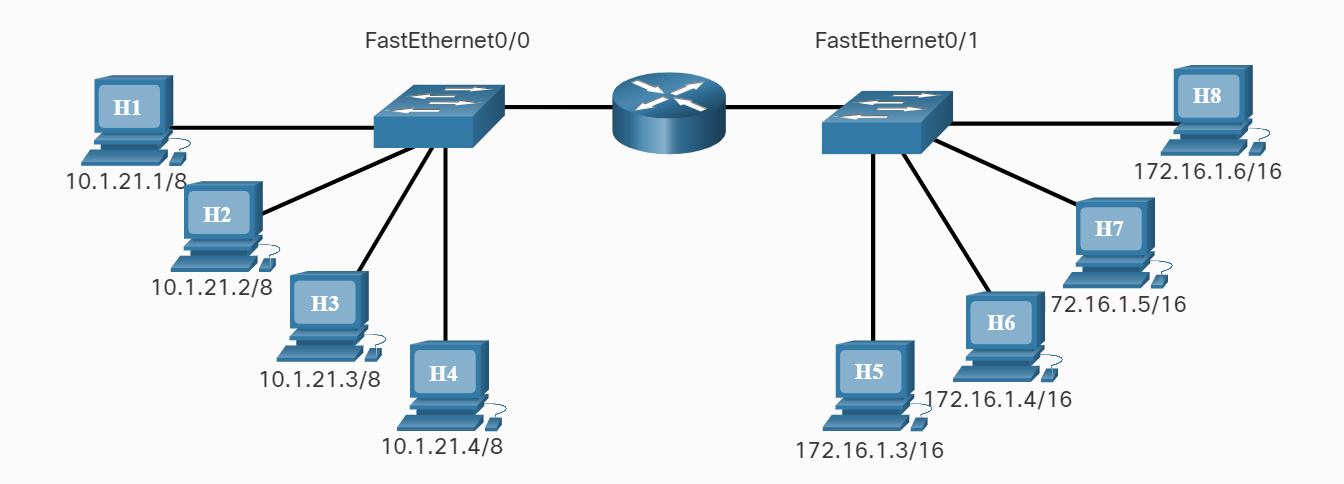

Each port, or interface, on a router connects to a different local network. Every router contains a table of all locally connected networks and the interfaces that connect to them.
When a router receives a frame, it decodes the frame to get to the packet containing the destination IP address. It matches the network portion of the destination IP address to the networks that are listed in the routing table. If the destination network address is in the table, the router encapsulates the packet in a new frame in order to send it out. It forwards the new frame out of the interface associated with the path, to the destination network. The process of forwarding the packets toward their destination network is called routing.
A router forwards a packet to one of two places: a directly connected network containing the actual destination host, or to another router on the path to reach the destination host. When a router encapsulates the frame to forward it out a routed interface, it must include a destination MAC address. If the router must forward the packet to another router through a routed interface, it will use the MAC address of the connected router. Routers obtain these MAC addresses from ARP tables.

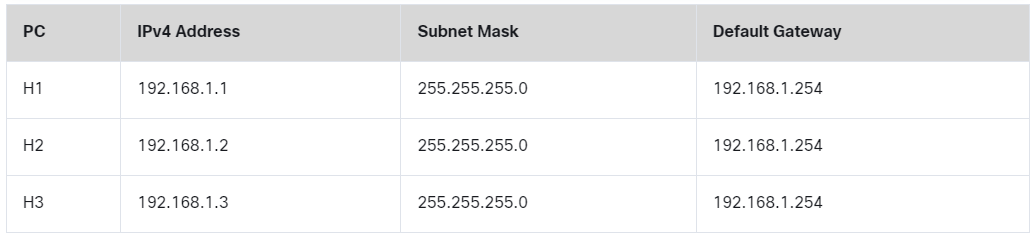

A host is given the IPv4 address of the router through the default gateway address configured in its TCP/IP settings. The default gateway address is the address of the router interface connected to the same local network as the source host. All hosts on the local network use the default gateway address to send messages to the router.
Routing tables contain the addresses of networks, and the best path to reach those networks. Entries can be made to the routing table in two ways: dynamically updated by information received from other routers in the network, or manually entered by a network administrator.

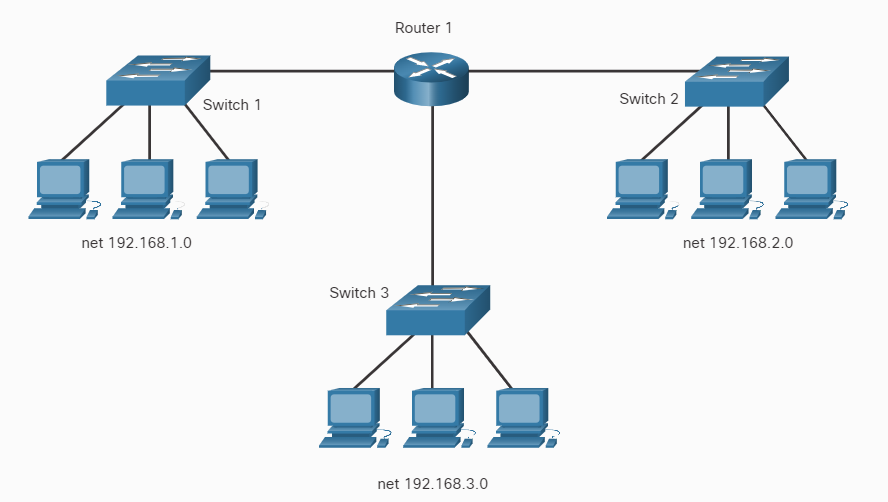

Create a LAN
LAN refers to a local network, or a group of interconnected local networks that are under the same administrative control. All the local networks within a LAN are under one administrative control. Other common characteristics of LANs are that they typically use Ethernet or wireless protocols, and they support high data rates.
Within a LAN, it is possible to place all hosts on a single local network or divide them up between multiple networks connected by a distribution layer device.
Placing all hosts on a single local network allows them to be seen by all other hosts. This is because there is one broadcast domain and hosts use ARP to find each other.
Placing additional hosts on a remote network will decrease the impact of traffic demands. However, hosts on one network will not be able to communicate with hosts on the other network without the use of routing. Routers increase the complexity of the network configuration and can introduce latency, or time delay, on packets sent from one local network to the other.
