Introduction to the Box Model

Browsers load HTML elements with default position values. This often leads to an unexpected and unwanted user experience while limiting the views you can create. In this lesson, you will learn about the box model, an important concept to understand how elements are positioned and displayed on a website.

If you have used HTML and CSS, you have unknowingly seen aspects of the box model. For example, if you have set the background color of an element, you may have noticed that the color was applied not only to the area directly behind the element but also to the area to the right of the element. Also, if you have aligned text, you know it is aligned relative to something. What is that something?

All elements on a web page are interpreted by the browser as “living” inside of a box. This is what is meant by the box model.

For example, when you change the background color of an element, you change the background color of its entire box.

The Box Model

The box model comprises the set of properties that define parts of an element that take up space on a web page. The model includes the content area’s size (width and height) and the element’s padding, border, and margin. The properties include:

  • width and height: The width and height of the content area.
  • padding: The amount of space between the content area and the border.
  • border: The thickness and style of the border surrounding the content area and padding.
  • margin: The amount of space between the border and the outside edge of the element.

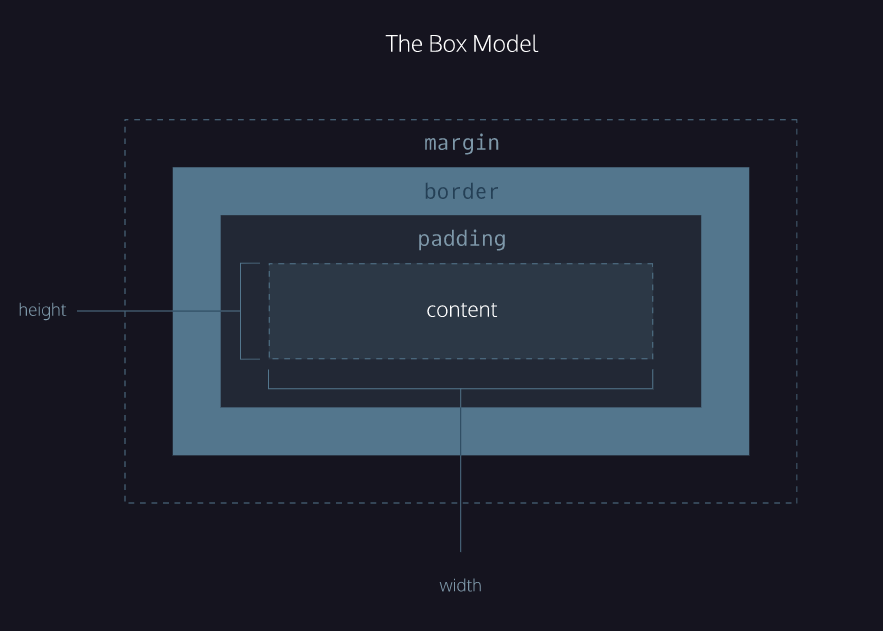

box model

Height and Width

An element’s content has two dimensions: a height and a width. By default, the dimensions of an HTML box are set to hold the raw contents of the box.

The CSS height and width properties can be used to modify these default dimensions.

CSS
p {
  height: 80px;
  width: 240px;
}

Minimum and Maximum Height and Width

Because a web page can be viewed through displays of differing screen size, the content on the web page can suffer from those changes in size. To avoid this problem, CSS offers two properties that can limit how narrow or how wide an element’s box can be sized to:

  • min-width: this property ensures a minimum width of an element’s box.
  • max-width: this property ensures a maximum width of an element’s box.
CSS
p {
  min-width: 300px;
  max-width: 600px;
}

You can also limit the minimum and maximum height of an element:

  • min-height: this property ensures a minimum height for an element’s box.
  • max-height: this property ensures a maximum height of an element’s box.
CSS
p {
  min-height: 150px;
  max-height: 300px;
}
What will happen to the contents of an element’s box if the max-height property is set too low?

It’s possible for the content to spill outside of the box, resulting in content that is not legible.

Borders

A border is a line that surrounds an element, like a frame around a painting. Borders can be set with a specific width, style, and color:

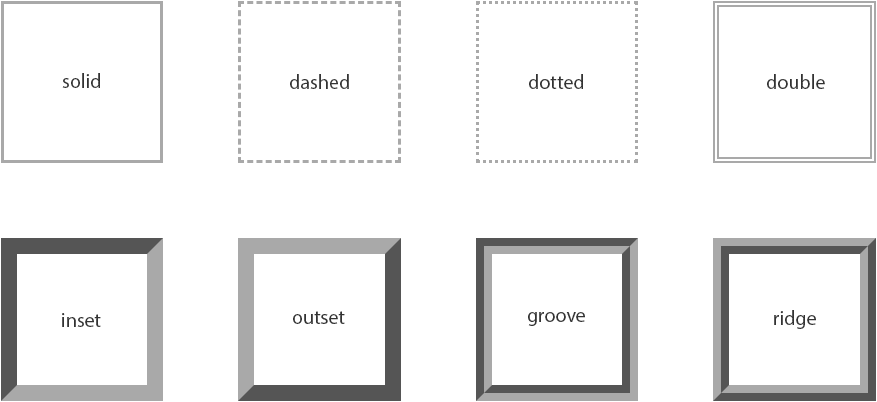

box model

  • width: The thickness of the border. A border’s thickness can be set in pixels or with one of the following keywords: thin, medium, or thick.
  • style: The design of the border. Web browsers can render any of 10 different styles. Some of these styles include: none, dotted, and solid.
  • color: The color of the border. Web browsers can render colors using a few different formats, including 140 built-in color keywords.
CSS
p {
  border: 3px solid coral;
}

Important

The default border is medium none color, where color is the current color of the element. If width, style, or color are not set in the CSS file, the web browser assigns the default value for that property.

Border Radius

The borders highlight the true shape of an element’s box: square. Thanks to CSS, a border doesn’t have to be square.

You can modify the corners of an element’s border box with the border-radius property.

CSS
div.container {
  border: 3px solid blue;
  border-radius: 5px;
}

The code in the example above will set all four corners of the border to a radius of 5 pixels (i.e. the same curvature that a circle with a radius of 5 pixels would have).

You can create a border that is a perfect circle by first creating an element with the same width and height, and then setting the radius equal to half the width of the box, which is 50%.

CSS
div.container {
  height: 60px;
  width: 60px;
  border: 3px solid blue;
  border-radius: 50%;
}

Padding

The space between the contents of a box and the borders of a box is known as padding. Padding is like the space between a picture and the frame surrounding it. In CSS, you can modify this space with the padding property.

CSS
p.content-header {
  border: 3px solid coral;
  padding: 10px;
}

The padding property is often used to expand the background color and make the content look less cramped.

If you want to be more specific about the amount of padding on each side of a box’s content, you can use the following properties:

  • padding-top
  • padding-right
  • padding-bottom
  • padding-left

Each property affects the padding on only one side of the box’s content, giving you more flexibility in customization.

CSS
p.content-header {
  border: 3px solid fuchsia;
  padding-bottom: 10px;
}

Padding Shorthand

Padding shorthand lets you specify all of the padding properties as values on a single line.

CSS
p.content-header {
padding: 6px 11px 4px 9px;
}

In the example above, the four values 6px 11px 4px 9px correspond to the amount of padding on each side, in a clockwise rotation. In order, it specifies the padding-top value (6px), the padding-right value (11px), the padding-bottom value (4px), and the padding-left value (9px) of the content.

CSS
p.content-header {
padding: 5px 10px 20px;
}

If the left and right sides of the content can be equal, the padding shorthand property allows for 3 values to be specified. The first value sets the padding-top value (5px), the second value sets the padding-left and padding-right values (10px), and the third value sets the padding-bottom value (20px).

CSS
p.content-header {
padding: 5px 10px;
}

And finally, if the top and bottom sides can be equal, and the left and right sides can be equal, you can specify 2 values. The first value sets the padding-top and padding-bottom values (5px), and the second value sets the padding-left and padding-right values (10px).

Margin

Margin refers to the space directly outside of the box. The margin property is used to specify the size of this space.

CSS
p {
  border: 1px solid aquamarine;
  margin: 20px;
}

The code in the example above will place 20 pixels of space on the outside of the paragraph’s box on all four sides. This means that other HTML elements on the page cannot come within 20 pixels of the paragraph’s border.

If you want to be even more specific about the amount of margin on each side of a box, you can use the following properties:

  • margin-top
  • margin-right
  • margin-bottom
  • margin-left

Each property affects the margin on only one side of the box, providing more flexibility in customization.

CSS
p {
  border: 3px solid DarkSlateGrey;
  margin-right: 15px;
}

Margin Shorthand

Similar to padding shorthand, margin shorthand lets you specify all of the margin properties as values on a single line.

CSS
p {
margin: 6px 10px 5px 12px;
}

In the example above, the four values 6px 10px 5px 12px correspond to the thickness of the margin on each side, in a clockwise rotation. In order, it specifies the margin-top value (6px), the margin-right value (10px), the margin-bottom value (5px), and the margin-left value (12px) of the content.

CSS
p {
margin: 5px 12px 4px;
}

If the left and right sides of the content can be equal, the margin shorthand property allows for 3 values to be specified. The first value sets the margin-top value (5px), the second value sets the margin-left and margin-right values (12px), and the third value sets the margin-bottom value (4px).

CSS
p {
margin: 20px 10px;
}

And finally, if the top and bottom sides can be equal, and the left and right sides can be equal, you can specify 2 values. The first value sets the margin-top and margin-bottom values (20px), and the second value sets the margin-left and margin-right values (10px).

Auto

The margin property also lets you center content. However, you must follow a few syntax requirements. Take a look at the following example:

CSS
div.headline {
  width: 400px;
  margin: 0 auto;
}

In the example above, margin: 0 auto; will center the divs in their containing elements. The 0 sets the top and bottom margins to 0 pixels. The auto value instructs the browser to adjust the left and right margins until the element is centered within its containing element.

In order to center an element, a width must be set for that element. Otherwise, the width of the div will be automatically set to the full width of its containing element, like the <body>, for example. It’s not possible to center an element that takes up the full width of the page, since the width of the page can change due to display and/or browser window size.

Margin Collapse

As you have seen, padding is space added inside an element’s border, while margin is space added outside an element’s border. One additional difference is that top and bottom margins, also called vertical margins, collapse, while top and bottom padding does not.

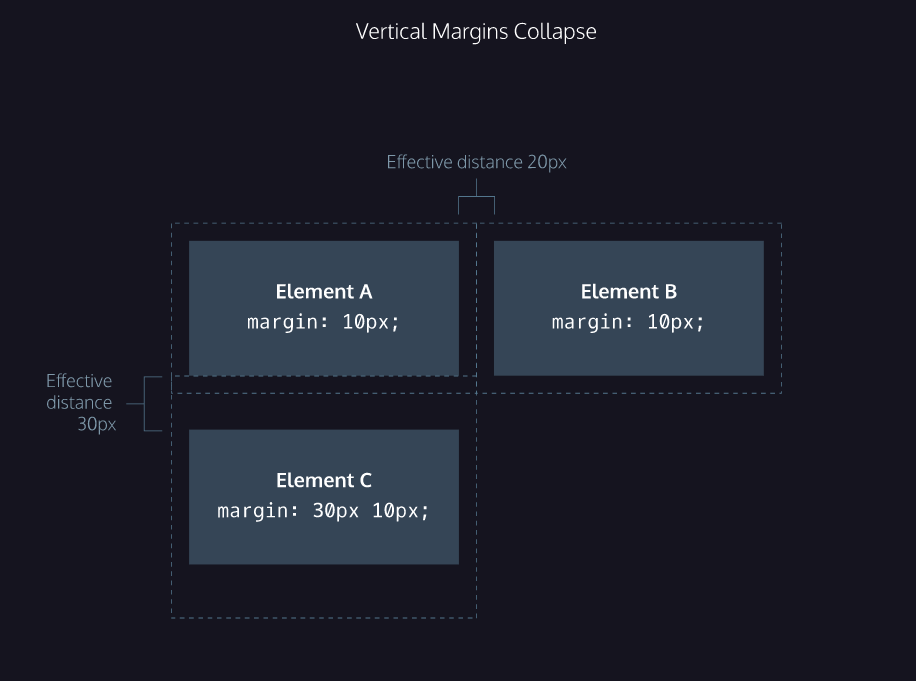

Margin Collapse

Horizontal margins (left and right), like padding, are always displayed and added together. For example, if two divs with ids #div-one and #div-two, are next to each other, they will be as far apart as the sum of their adjacent margins.

CSS
#img-one {
  margin-right: 20px;
}

#img-two {
  margin-left: 20px;
}

In this example, the space between the #img-one and #img-two borders is 40 pixels.

Unlike horizontal margins, vertical margins do not add. Instead, the larger of the two vertical margins sets the distance between adjacent elements.

CSS
#img-one {
  margin-bottom: 30px;
}

#img-two {
  margin-top: 20px;
}

In this example, the vertical margin between the #img-one and #img-two elements is 30 pixels. Although the sum of the margins is 50 pixels, the margin collapses so the spacing is only dependent on the #img-one bottom margin.

Overflow

All of the components of the box model comprise an element’s size. For example, an image that has the following dimensions:

  • 300 pixels wide
  • 200 pixels tall
  • 10 pixels padding on the left and right
  • 10 pixels padding on the top and bottom
  • 2 pixels border on the left and right
  • 2 pixels border on the top and bottom
  • 20 pixels margin on the left and right
  • 10 pixels margin on the top and bottom

is 364 pixels wide and 244 pixels tall. Sometimes, these components result in an element that is larger than the parent’s containing area.

How can we ensure that we can view all of an element that is larger than its parent’s containing area?

The overflow property controls what happens to content that spills, or overflows, outside its box. The most commonly used values are:

  • hidden: when set to this value, any content that overflows will be hidden from view.
  • scroll: when set to this value, a scrollbar will be added to the element’s box so that the rest of the content can be viewed by scrolling.
  • visible: when set to this value, the overflow content will be displayed outside of the containing element. This is the default value.
CSS
p {
  overflow: scroll;
}

In the example above, if any of the paragraph content overflows (perhaps a user resizes their browser window), a scrollbar will appear so that users can view the rest of the content.

The overflow property is set on a parent element to instruct a web browser on how to render child elements. For example, if a div’s overflow property is set to scroll, all children of this div will display overflowing content with a scroll bar.

Resetting Defaults

All major web browsers have a default stylesheet they use in the absence of an external stylesheet. These default stylesheets are known as user agent stylesheets. In this case, the term user agent is a technical term for the browser.

User agent stylesheets often have default CSS rules that set default values for padding and margin. This affects how the browser displays HTML elements, which can make it difficult for a developer to design or style a web page.

Many developers choose to reset these default values so that they can truly work with a clean slate.

CSS
* {
  margin: 0;
  padding: 0;
}

The code in the example above resets the default margin and padding values of all HTML elements. It is often the first CSS rule in an external stylesheet.

Info

Note that both properties are set to 0. When these properties are set to 0, they do not require a unit of measurement.

Visibility

Elements can be hidden from view with the visibility property.

The visibility property can be set to one of the following values:

  • hidden — hides an element.
  • visible — displays an element.
  • collapse — collapses an element.
HTML
<ul>
  <li>Explore</li>
  <li>Connect</li>
  <li class="future">Donate</li>
</ul>
CSS
.future {
  visibility: hidden;
}

In the example above, the list item with a class of future will be hidden from view in the browser.

Keep in mind, however, that users can still view the contents of the list item (e.g., Donate) by viewing the source code in their browser. Furthermore, the web page will only hide the contents of the element. It will still leave an empty space where the element is intended to display.

What’s the difference between display: none and visibility: hidden?

An element with display: none will be completely removed from the web page. An element with visibility: hidden, however, will not be visible on the web page, but the space reserved for it will.
