Display & Positioning

HTML Flow

A browser will render the elements of an HTML document that has no CSS from left to right, top to bottom, in the same order as they exist in the document. This is called the flow of elements in HTML.

In addition to the properties that it provides to style HTML elements, CSS includes properties that change how a browser positions elements. These properties specify where an element is located on a page, if the element can share lines with other elements, and other related attributes.

In this chapter, you will learn five properties for adjusting the position of HTML elements in the browser:

• position
• z-index
• display
• float
• clear

Each of these properties will allow us to position and view elements on a web page. They can be used in conjunction with any other styling properties you may know.

Position

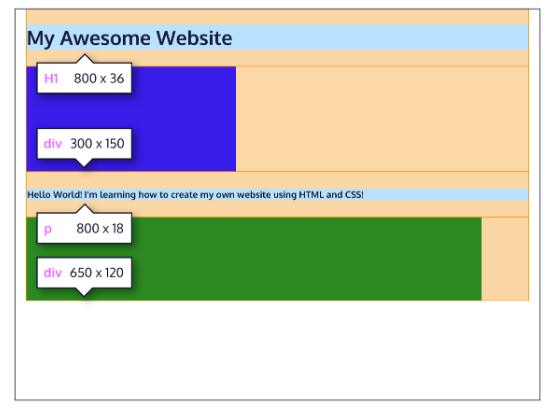

Take a look at the block-level elements in the image below:

Block-level elements like these boxes create a block the full width of their parent elements, and they prevent other elements from appearing in the same horizontal space.

Notice the block-level elements in the image above take up their own line of space and therefore don’t overlap each other. You can see block-level elements also consistently appear on the left side of the browser. This is the default position for block-level elements.

The default position of an element can be changed by setting its position property. The position property can take one of five values:

• static - the default value (it does not need to be specified)
• relative
• absolute
• fixed
• sticky

Position Property

staticrelativeabsolutefixedsticky

If you favor the default position of an HTML element, you don’t need to set its position property.

This value allows you to position an element relative to its default static position on the web page.

CSS

.green-box {
  background-color: green;
  position: relative;
}

Although the code in the example above instructs the browser to expect a relative positioning of the .green-box element, it does not specify where the .green-box element should be positioned on the page.

This is done by accompanying the position declaration with one or more of the following offset properties that will move the element away from its default static position:

• top - moves the element down from the top.
• bottom - moves the element up from the bottom.
• left - moves the element away from the left side (to the right).
• right - moves the element away from the right side (to the left).

You can specify values in pixels, ems, or percentages, among others, to dial in exactly how far you need the element to move. It’s also important to note that offset properties will not work if the element’s position property is the default static.

CSS

.green-box {
  background-color: green;
  position: relative;
  top: 50px;
  left: 120px;
}

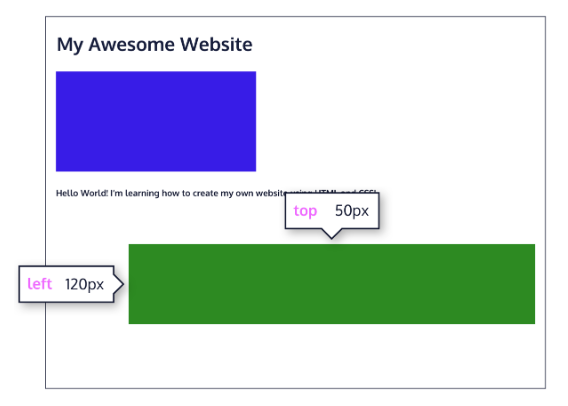

In the example above, the element of green-box class will be moved down 50 pixels, and to the right 120 pixels, from its default static position. The image below displays the new position of the box.

Offsetting the relative element will not affect the positioning of other elements.

When an element’s position is set to absolute, all other elements on the page will ignore the element and act like it is not present on the page. The element will be positioned relative to its closest positioned parent element, while offset properties can be used to determine the final position from there. Take a look at the image below:

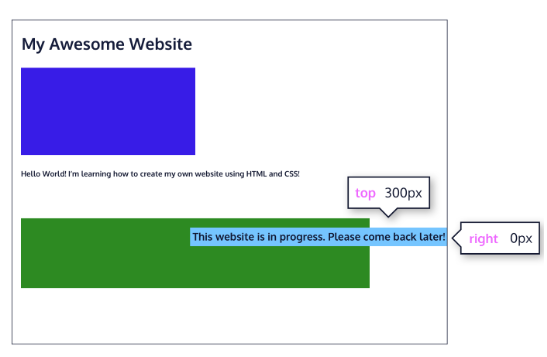

The “This website is in progress. Please come back later!” text is displaced from its static position at the top left corner of its parent container. It has offset property declarations of top: 300px; and right: 0px;, positioning it 300 pixels down, and 0 pixels from the right side of the page.

When an element’s position is set to absolute, as in the last exercise, the element will scroll with the rest of the document when a user scrolls.

We can fix an element to a specific position on the page (regardless of user scrolling) by setting its position to fixed, and accompanying it with the familiar offset properties top, bottom, left, and right.

CSS

.title {
  position: fixed;
  top: 0px;
  left: 0px;
}

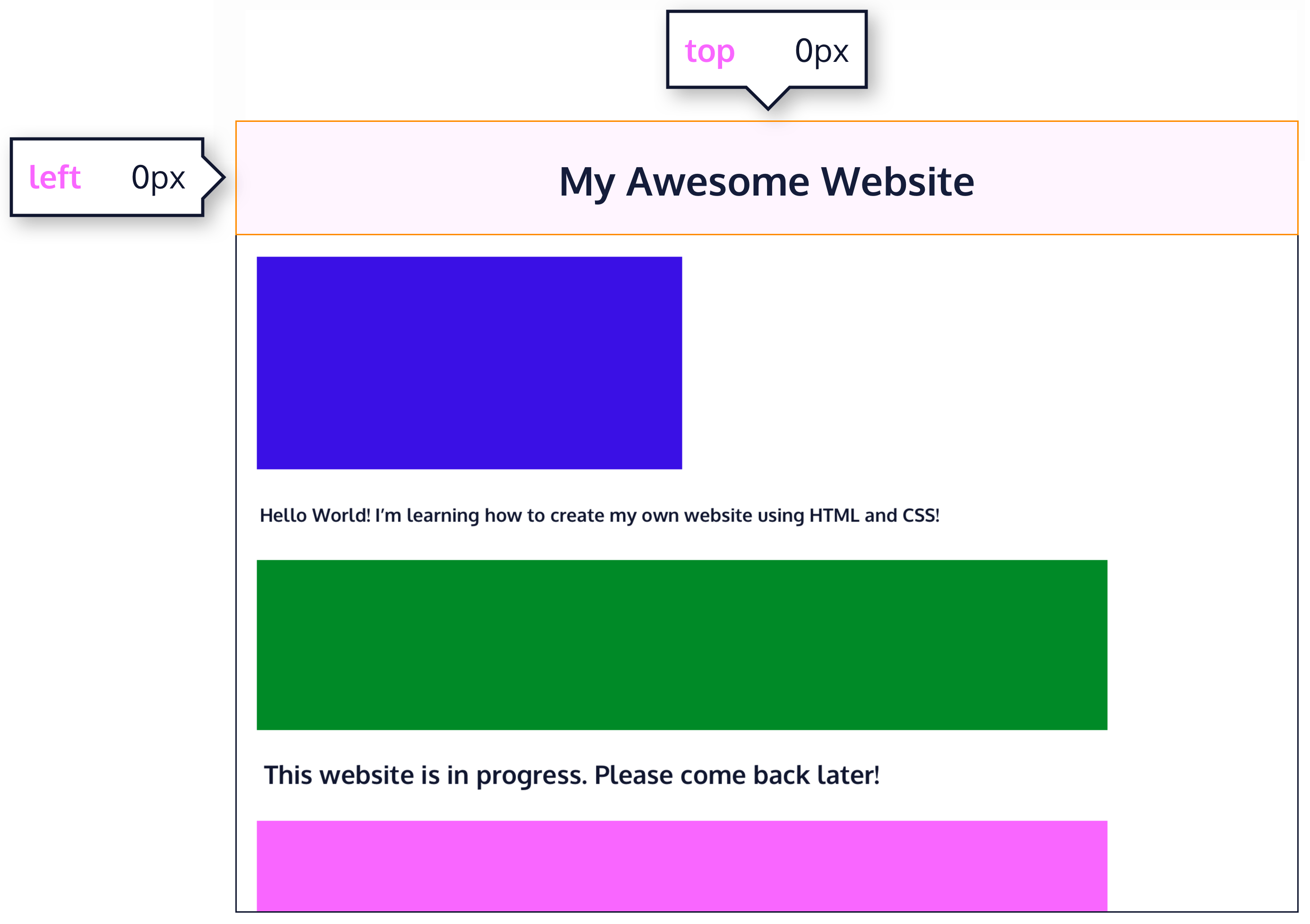

In the example above, the .title element will remain fixed to its position no matter where the user scrolls on the page, like in the image below:

This technique is often used for navigation bars on a web page.

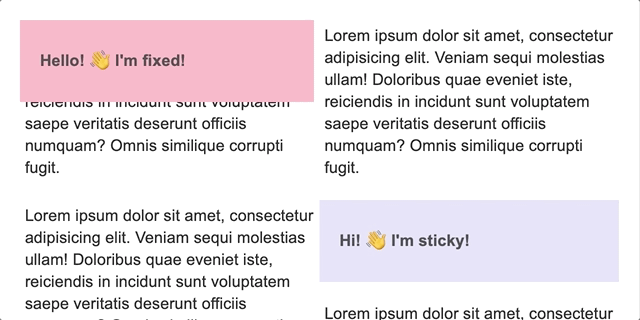

The sticky value is another position value that keeps an element in the document flow as the user scrolls, but sticks to a specified position as the page is scrolled further. This is done by using the sticky value along with the familiar offset properties, as well as one new one.

CSS

.box-bottom {
  background-color: darkgreen;
  position: sticky;
  top: 240px;
}

In the example above, the .box-bottom <div> will remain in its relative position, and scroll as usual. When it reaches 240 pixels from the top, it will stick to that position until it reaches the bottom of its parent container where it will “unstick” and rejoin the flow of the document.

Z-Index

When boxes on a web page have a combination of different positions, the boxes (and therefore, their content) can overlap with each other, making the content difficult to read or consume.

CSS

.blue-box {
  background-color: blue;
}

.green-box {
  background-color: green;
  position: relative;
  top: -170px;
  left: 170px;
}

In the example above, the .green-box element overlaps on top of the .blue-box element.

The z-index property controls how far back or how far forward an element should appear on the web page when elements overlap. This can be thought of as the depth of elements, with deeper elements appearing behind shallower elements.

The z-index property accepts integer values. Depending on their values, the integers instruct the browser on the order in which elements should be layered on the web page.

CSS

.blue-box {
  background-color: blue;
  position: relative;
  z-index: 1;
}

.green-box {
  background-color: green;
  position: relative;
  top: -170px;
  left: 170px;
}

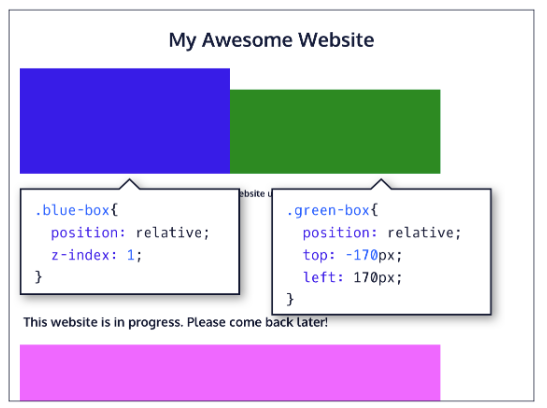

In the example above, we set the .blue-box position to relative and the z-index to 1. We changed position to relative, because the z-index property does not work on static elements. The z-index of 1 moves the .blue-box element forward, because the z-index value has not been explicitly specified for the .green-box element, which means it has a default z-index value of 0. Take a look at the example image below:

Display

Every HTML element has a default display value that dictates if it can share horizontal space with other elements. Some elements fill the entire browser from left to right regardless of the size of their content. Other elements only take up as much horizontal space as their content requires and can be directly next to other elements.

We will cover three values for the display property:

• inline
• block
• inline-block.

Display

inlineblockinline-block

The default display for some elements, such as <em>, <strong>, and <a>, is called inline. Inline elements have a box that wraps tightly around their content, only taking up the amount of space necessary to display their content and not requiring a new line after each element.

The height and width of these elements cannot be specified in the CSS document. For example, the text of an anchor tag (<a>) will, by default, be displayed on the same line as the surrounding text, and it will only be as wide as necessary to contain its content. inline elements cannot be altered in size with the height or width CSS properties.

CSS

To learn more about <em>inline</em> elements, read <a href="#">MDN documentation</a>.

In the example above, the <em> element is inline, because it displays its content on the same line as the content surrounding it, including the anchor tag. This example will display:

To learn more about inline elements, read MDN documentation.

The CSS display property provides the ability to make any element an inline element. This includes elements that are not inline by default such as paragraphs, divs, and headings.

CSS

h1 {
  display: inline;
}

The CSS in the example above will change the display of all <h1> elements to inline. The browser will render <h1> elements on the same line as other inline elements immediately before or after them (if there are any).

Some elements are not displayed in the same line as the content around them. These are called block-level elements. These elements fill the entire width of the page by default, but their width property can also be set. Unless otherwise specified, they are the height necessary to accommodate their content.

Elements that are block-level by default include all levels of heading elements (<h1> through <h6>), <p>, <div> and <footer>.

CSS

strong {
  display: block;
}

In the example above, all <strong> elements will be displayed on their own line, with no content directly on either side of them even though their contents may not fill the width of most computer screens.

The third value for the display property is inline-block. Inline-block display combines features of both inline and block elements. Inline-block elements can appear next to each other and we can specify their dimensions using the width and height properties. Images are the best example of default inline-block elements.

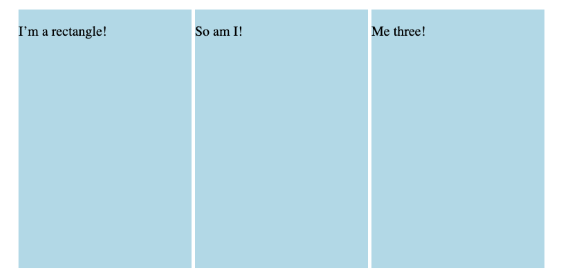

For example, the <div>s below will be displayed on the same line and with the specified dimensions:

Let’s take a look at the code:

CSS

<div class="rectangle">
  <p>I’m a rectangle!</p>
</div>
<div class="rectangle">
  <p>So am I!</p>
</div>
<div class="rectangle">
  <p>Me three!</p>
</div>
.rectangle {
  display: inline-block;
  width: 200px;
  height: 300px;
}

There are three rectangular divs that each contain a paragraph of text. The .rectangle <div>s will all appear inline (provided there is enough space from left to right) with a width of 200 pixels and height of 300 pixels, even though the text inside of them may not require 200 pixels by 300 pixels of space.

Float

So far, you’ve learned how to specify the exact position of an element using offset properties. If you’re simply interested in moving an element as far left or as far right as possible in the container, you can use the float property.

The float property is commonly used for wrapping text around an image and is often set using one of the values below:

• left - moves, or floats, elements as far left as possible.
• right - moves elements as far right as possible.

CSS

.green-section {
  width: 50%;
  height: 150px;
}

.orange-section {
  background-color: orange;
  width: 50%;
  float: right;
}

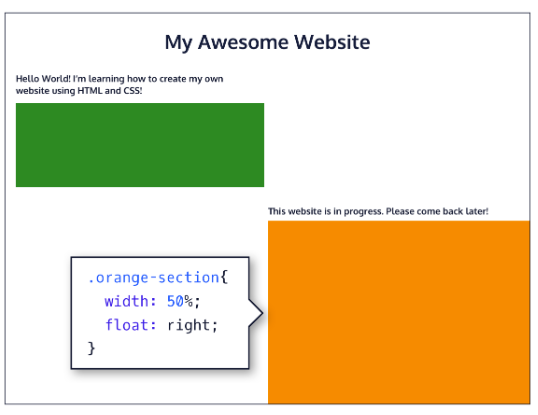

In the example above, we float the .orange-section element to the right. This works for static and relative positioned elements. See the result of the code below:

Floated elements must have a width specified, as in the example above. Otherwise, the element will assume the full width of its containing element, and changing the float value will not yield any visible results.

Clear

The float property can also be used to float multiple elements at once. However, when multiple floated elements have different heights, it can affect their layout on the page. Specifically, elements can “bump” into each other and not allow other elements to properly move to the left or right.

The clear property specifies how elements should behave when they bump into each other on the page. It can take on one of the following values:

• left—the left side of the element will not touch any other element within the same containing element.
• right—the right side of the element will not touch any other element within the same containing element.
• both—neither side of the element will touch any other element within the same containing element.
• none—the element can touch either side.

CSS

div {
  width: 200px;
  float: left;
}

div.special {
  clear: left;
}

In the example above, all <div>s on the page are floated to the left side. The element with class special did not move all the way to the left because a taller <div> blocked its positioning. By setting its clear property to left, the special <div> will be moved all the way to the left side of the page.
